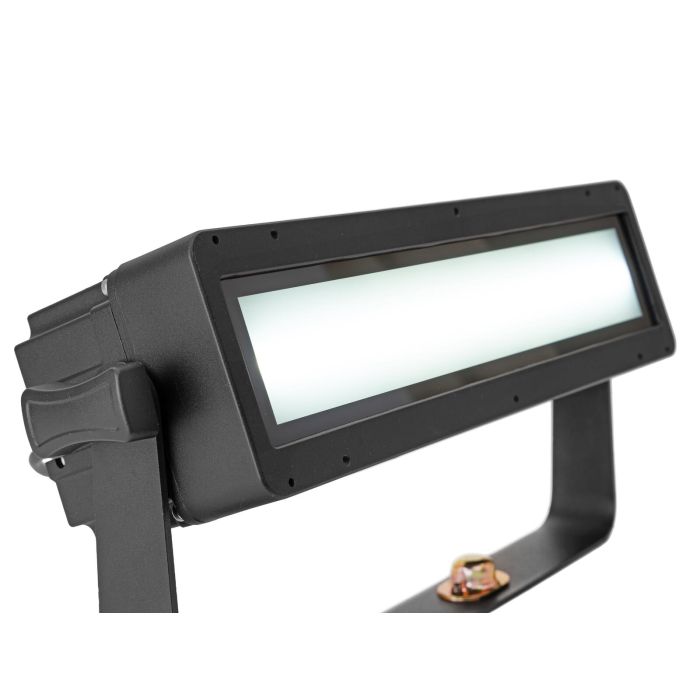

Linkable outdoor spotlight (IP65) with stepless electronic frost for stroboscope, ambient and animation effects

• 240 powerful LEDs 0.5 W SMD 5050 3in1 TCL RGB
  8 segments controlled separately
• 40 powerful LEDs 1 W SMD 3030 2in1 BCL CW/WW
  4 segments controlled separately
• Integrated mounting system for toolfree and seemless cluster setups
• Wash effect; strobe effect
• Frost filter electronic; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable; color animations with two adjustable colors
• 20 integrated show programs
• Variable color temperature 3200 K - 6600 K
• Direct color temperature selection for 35 preset values
• Control via stand-alone; sound to light via microphone; master/slave function; DMX
• DMX fail mode (blackout; hold; auto; manual)
• With a beam angle of 120°
• Good color rendering index (CRI)
• Monochrome OLED display
• With mounting bracket; with omega bracket
• Built with SEETRONIC connector
• For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels; theater; rental; architecture
• The device is cooled by passive convection cooling
• Silent operation
• Application possibility: Suspended; on stand
• Preprogrammed in Light Captain
• IP65
• With pressure compensation membrane
• Mains input and output for power linking up to 8 units
• Technical specifications

  Power supply:	100-240 V AC, 50/60 Hz
  Power consumption:	180 W
  IP classification:	IP65
  Protection class:	Protection class I
  Power connection:	Mains input power supply cord with safety plug
  Power output:	1 x IP T-Con (F) mounting version
  Lamp type:	LED lamp
  LED type:	240 x 0.5 W SMD 5050 3in1 TCL RGB 40 x 1 W SMD 3030 2in1 BCL CW/WW
  Flash rate:	1 - 25 Hz
  DMX channels:	7; 11; 19; 25; 26; 32; 33; 35
  DMX input:	1 x 3-pin XLR (M) mounting version IP
  DMX output:	1 x 3-pin XLR (F) mounting version IP
  Cooling:	Passive convection cooling
  Control:	Stand-alone; sound to light via microphone; master/slave function; DMX
  Preprogrammed in:	Light Captain
  PWM frequency:	4000 Hz
  DMX fail mode:	Blackout; hold; auto; manual
  Beam angle:	120°
  Beam angle (1/2 peak):	120° multicolor
  Color temperature:	3200K - 6600K adjustable
  Color rendering index (CRI):	80 Ra
  Lamp life:	50000 h
  Distance to wall:	500 mm
  Housing color:	Black matte
  Attachment system:	Ø 12mm Mounting bracket Ø 12mm Omega bracket
  Display type:	1 x monochrome OLED display
  Use of brands:	Built with SEETRONIC connector
  Dimensions:	Length: 38 cm Width: 10.8 cm Height: 17.65 cm
  Weight:	3.70 kg
  Noise classification:	Class 0 (no noise at all)
  Mounting bracket
  Diameter mounting holes:	1 x Ø12mm
  Material:	Metal, painted
  Power cord
  Cable construction:	3 x 1.5 mm² H07RN-F
  Cable length:	Approx. 1.2 m
  Omega bracket
  Material:	Metal, painted
  Device
  Material:	Metal, painted
  Legal specifications
  Special product:	Not designed for household room illumination
  Intended use:	Show effect lighting
